Non Woven Fabric

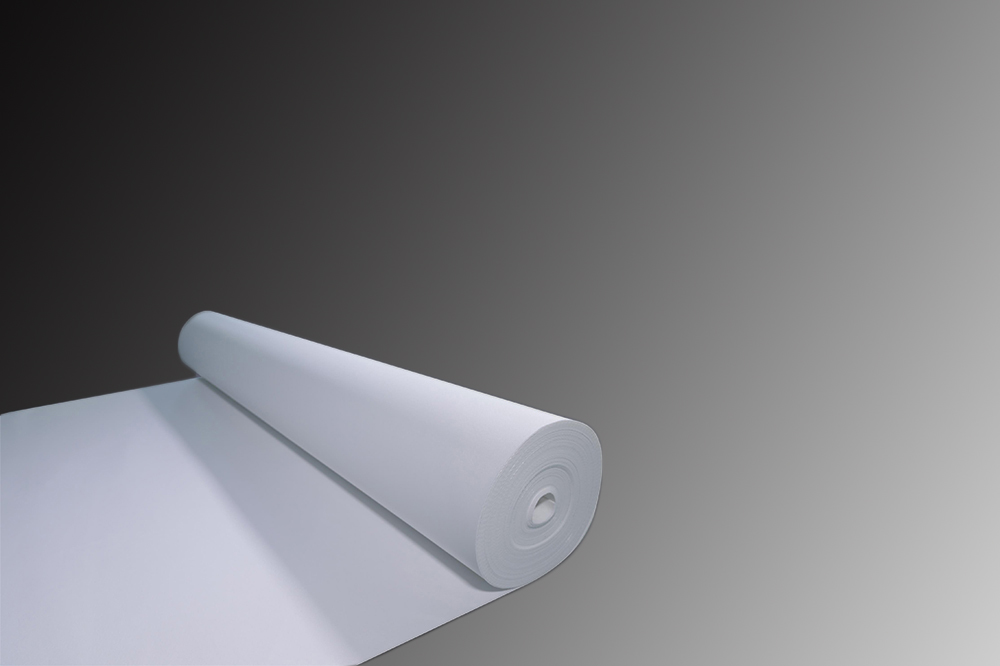

polyester spunbond geotextile

Weight:100g/㎡
Material: 100% Polyester
Nonwoven Technics:Spun-Bonded
Description: The good-quality and cheap price Spunbond Polyester Nonwoven from Chinese factory. (Accept the OEM)
INQUIRY EMAIL

Geotexile membrane for construction waterproofing is made of 100% quality original polyester chips, by the process of spinning & web formation and needle punching. The maximum width of the product is 4.5 meters. According to different requirements, we can also supply flame retardant, anti-aging and other functional geotextiles.

Feature:Anti-Bacteria, Anti-Pull, Anti-Static, Breathable,Sustainable,Fusible,Mothproof,Shrink-Resistant,Tear-Resistant,Water-Soluble,Waterproof

Polyester filament nonwoven needle punched geotextile
Weight/㎡	g/㎡	100	150	200	250	300	350	400	450	500	600	800	Note
Weight deviation per unit area	%	-6	-6	-6	-5	-5	-5	-5	-5	-4	-4	-4
Thickness ≥	mm	0.5	1.2	1.6	1.9	2.2	2.5	2.8	3.1	3.4	4.2	5.5
Width deviation	%	-0.5											CD/MD
Breaking strength ≥	kn/m	4.5	7.5	10	12.5	15	17.5	20.5	22.5	25	30	40	CD/MD
Breaking elongation	%	40-80
CBR puncture strength ≥	kn	0.8	1.4	1.8	2.2	2.6	3	3.5	4	4.7	5.5	7
Equivalent hole diameter O90	mm	0.07-0.2
Vertical water flow	cm/s	0.001-0.99
Tear strength ≥	kn	0.14	0.21	0.28	0.35	0.42	0.49	0.56	0.63	0.7	0.82	1.1	CD/MD
Width	mm	4000-4600

·High Strength；

·High Creep Resistance；

·Aging Resistance；

·Heat Resistance；

·Good Hydraulics Performance；

·In virtue of the superior physical properties of PET geotextile, it can be applied to any geotechnical engineering environment，especially the environment with acid and alkali, such as highway, railway (HSR), airport, seaport, landfill, tailings dam, fly ash landfill, ash dam pool, artificial wetlands, rivers and lakes governance, reservoirs, canals, land reclamation, sewage treatment works etc.

·Geotexile membrane for construction waterproofing used as the carrier for bituminous membrane reinforcement
